Cash Pick up

Receive Remittance Flow Diagrams#

Agents should follow the diagrams below to correctly execute the Receive process.

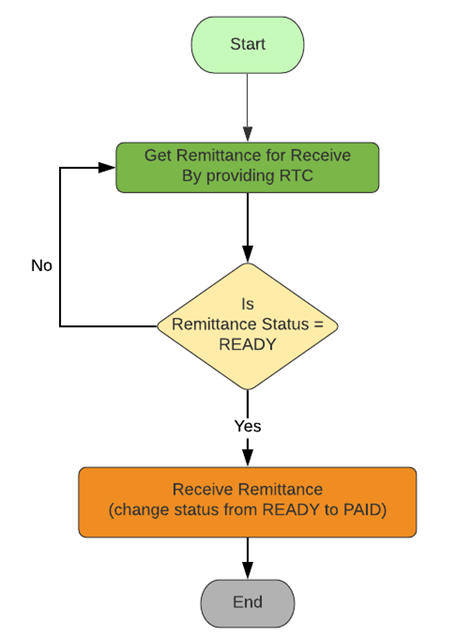

The diagram below illustrates the flow for receiving a Cash Pick-up remittance.

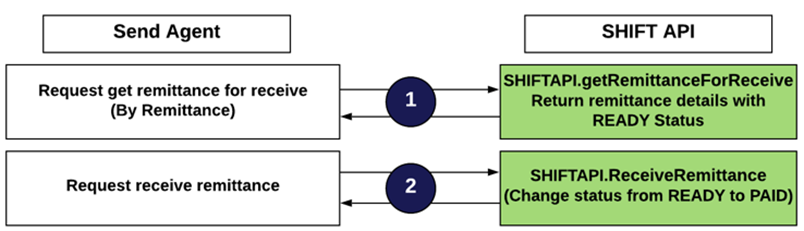

The diagram below illustrates the sequence of steps for receiving a Cash Pick-up remittance.

Get Remittance For Receive#

getRemittanceForReceive Mandatory

This method is used to retrieve remittance information for Cash Pick-up and lock it to complete the receiving process.

Info

Remittance information is retrieved only if:

The remittance status is READY, and
The remittance is not locked by another user

Important Note

This method retrieves a receiveOrderCode, which must be provided when calling the Receive Remittance method.

Once the agent calls this method and retrieves the remittance information, the remittance will be reserved for 10 minutes to complete the receiving process.

Request Inputs#

Field	Type	Size	Mandatory	Description
agentCode	String	5	Yes	Receive agent code assigned by SHIFT
userId	String	20	Yes	User ID assigned by SHIFT
userPassword	String	30	Yes	User password assigned by SHIFT
remittancTrackingCode	String	20	Yes	The remittance number that the receiver must provide to the agent to process the remittance

Response Outputs#

Field	Type	Description
resultCode	String	See the Result Codes and Messages table
resultMessage	String
remittanceInfo	Object	Remittance information object See below remittanceInfo

remittanceInfo#

remittanceInfo Object fields

Field	Type	Description
remittancTrackingCode	String
remittanceRecodingDate	Date	Format: dd/MM/yyyy
sendingCountryCode	String	ISO Alpha-3 (3166)
destinationCountryCode	String	ISO Alpha-3 (3166)
payingAmount	Decimal
PayoutAmount	Decimal	Final amount that should be delivered to the receiver.
payingCurrencyCode	String	ISO Alpha-3 (4217)
PayoutCurrencyCode	String	ISO Alpha-3 (4217)
payoutSettlementRate	Decimal	Cost rate for payout amount, payout currency to settlement currency
settlementPayoutAmount	Decimal	Payout amount in settlement currency "USD"
payingAmountSettlementRate	Decimal
remittanceStatus	String	The remittance will be available for retrieval only if its current status is READY
receiveOrderCode	String	This code should be provided in the receive remittance method
sender	Object	sender details object See below sender
receiver	Object	receiver details object See below receiver
payingToPayoutRate	Decimal
sendingReason	String
charges	Decimal
settlementCharges	Decimal
agentChargesShare	Decimal
agentFXChargesShare	Decimal
payingToPayoutRate	Decimal
sendingReason	String

sender#

sender Object fields

Field	Type	Size	Description
senderId	String	11
type	Integer	1	See the type table
firstName	String	50	This field is available if the sender type is 1. Allowed characters: English letters (A-Z, a-z) and spaces only
middleName	String	50	This field may be available if the sender type is 1. Allowed characters: English letters (A-Z, a-z) and spaces only
lastName	String	50	This field is available if the sender type is 1. Allowed characters: English letters (A-Z, a-z) and spaces only
enName	String	100	This field is available if the sender type is 2. Allowed characters: English letters (A-Z, a-z) and spaces only
telephone	String	20
mobile	String	20
address	String	200
nationalityCountryCode	String	3	ISO Alpha-3 (3166)
birthDateOrEstablishDate	Date		Format: dd/MM/yyyy If the sender type is 1, the sender's birthday will be provided. If the sender type is 2, the company establishment date will be provided
identityTypeCode	Integer
identityTypeName	String
identityNumber	String

receiver#

receiver Object fields

Field	Type	Size	Description
receiverId	String	11
type	Integer	1	See the type table
firstName	String	50	This field is available if the receiver type is 1. Allowed characters: English letters (A-Z, a-z) and spaces only
middleName	String	50	This field may be available if the receiver type is 1. Allowed characters: English letters (A-Z, a-z) and spaces only
lastName	String	50	This field is available if the receiver type is 1. Allowed characters: English letters (A-Z, a-z) and spaces only
enName	String	100	This field is available if the receiver type is 2. Allowed characters: English letters (A-Z, a-z) and spaces only
telephone	String	20
mobile	String	20
address	String	200
nationalityCountryCode	String	3	ISO Alpha-3 (3166)
identityTypeCode	Integer	4

SOAP Request#

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:web="http://webservice/">
  <soapenv:Header/>
  <soapenv:Body>
    <web:getRemittanceForReceive>
      <remittancTrackingCode>41941038491</remittancTrackingCode>
      <agentCode>*****</agentCode>
      <userId>*****</userId>
      <userPassword>*****</userPassword>
    </web:getRemittanceForReceive>
  </soapenv:Body>
</soapenv:Envelope>

SOAP Response#

<S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/">
  <S:Body>
    <ns3:getRemittanceForReceiveResponse xmlns:ns2="http://xml.netbeans.org/schema/ApiSchema" xmlns:ns3="http://webservice/">
      <return>
        <ns2:resultCode>9000</ns2:resultCode>
        <ns2:resultMessage>Operation successfully</ns2:resultMessage>
        <ns2:remittanceInfo>
          <ns2:remittanceTrackingCode>41941038491</ns2:remittanceTrackingCode>
          <ns2:remittanceRecordingDate>12/07/2020 10:31:44 PM</ns2:remittanceRecordingDate>
          <ns2:sendingCountryCode>JOR</ns2:sendingCountryCode>
          <ns2:destintationCountryCode>JOR</ns2:destintationCountryCode>
          <ns2:payingAmount>0.0</ns2:payingAmount>
          <ns2:PayoutAmount>100.0</ns2:PayoutAmount>
          <ns2:payoutCurrencyCode>JOD</ns2:payoutCurrencyCode>
          <ns2:remittanceStatus>READY</ns2:remittanceStatus>
          <ns2:payoutSettlementRate>0.7089</ns2:payoutSettlementRate>
          <ns2:settlementPayoutAmount>141.06</ns2:settlementPayoutAmount>
          <ns2:receiveOrderCode>I1926761987</ns2:receiveOrderCode>
          <ns2:sender>
            <ns2:senderId>198408</ns2:senderId>
            <ns2:type>1</ns2:type>
            <ns2:firstName>Ahmad</ns2:firstName>
            <ns2:lastName>Rami</ns2:lastName>
            <ns2:telephone/>
            <ns2:mobile>00962799999990</ns2:mobile>
            <ns2:address>test</ns2:address>
            <ns2:nationalityCountryCode>JOR</ns2:nationalityCountryCode>
            <ns2:birthDateOrEstablishDate>27/07/1980</ns2:birthDateOrEstablishDate>
            <ns2:identityTypeCode>1</ns2:identityTypeCode>
            <ns2:identityTypeName>Passport</ns2:identityTypeName>
            <ns2:identityNumber>1236587888</ns2:identityNumber>
          </ns2:sender>
          <ns2:receiver>
            <ns2:receiverId>271581</ns2:receiverId>
            <ns2:type>1</ns2:type>
            <ns2:firstName>Jamal</ns2:firstName>
            <ns2:lastName>Hasan</ns2:lastName>
            <ns2:telephone/>
            <ns2:mobile>224232321312</ns2:mobile>
            <ns2:address>test address</ns2:address>
            <ns2:nationalityCountryCode>JOR</ns2:nationalityCountryCode>
          </ns2:receiver>
          <ns2:payingToPayoutRate>0.0</ns2:payingToPayoutRate>
          <ns2:sendingReason>Tourism Expenses</ns2:sendingReason>
        </ns2:remittanceInfo>
      </return>
    </ns3:getRemittanceForReceiveResponse>
  </S:Body>
</S:Envelope>

Receive Remittance#

receiveRemittance Mandatory

This method is used to complete the receiving process for a Cash Pick-up remittance.

Status Change

Calling this method changes the remittance status to PAIDOUT.
